LT (Low Tension) panel is a broad blanket term for any panel operating under 1000V AC. A PCC panel is a specific, high-capacity type of LT panel installed at the absolute head of the electrical network—receiving main power straight from transformers or generators and feeding sub-LT panels (like MCCs or APFC panels) downstream.
Elephant Electric Power Solutions
has created a niche for itself in the
field of Power Solutions.
PCC Panel
Power Control Centre (PCC) Panel

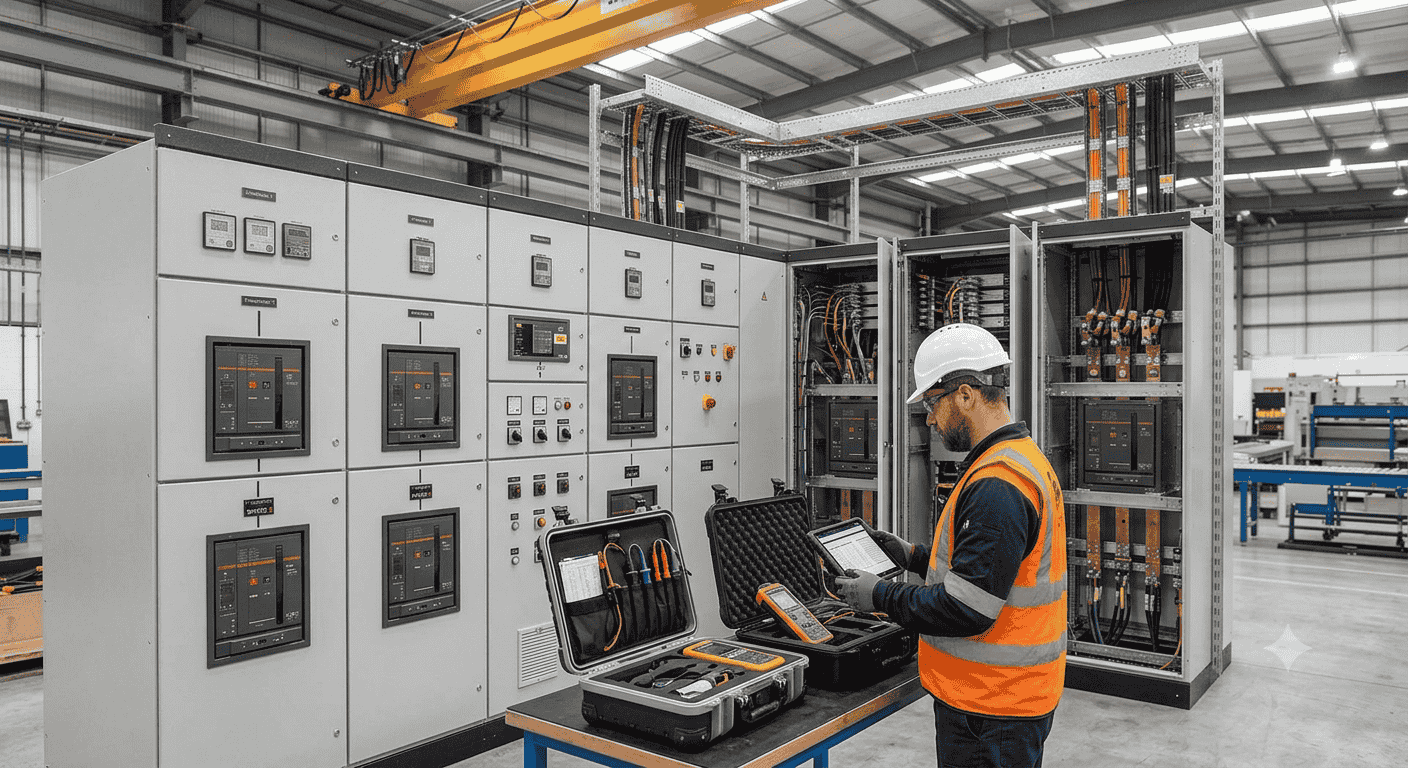

Our Power Control Centre (PCC) Panels serve as the primary nerve center for low-voltage electrical distribution in heavy industrial plants, manufacturing facilities, and large commercial infrastructures. Engineered for central main power distribution, each PCC panel acts as the main interface receiving power from transformers or generators and safely routing it across sub-distribution networks and heavy electrical loads.
Key Features & Benifits
- Modular & Expandable Design: Floor-standing, compartmentalized structure designed for effortless extension, maintenance, and cable routing.
- Modular & Expandable Design: Floor-standing, compartmentalized structure designed for effortless extension, maintenance, and cable routing.
- Advanced Monitoring & Automation: Smart digital meters, PLC integration options, and SCADA-compatible communication protocols (Modbus, Ethernet) for real-time remote telemetry.
Power Control Centre (PCC) panels are used across continuous-duty heavy industries, large-scale commercial facilities, and critical infrastructure. Placed immediately downstream of main power sources—such as utility transformers or captive generators—their job is to handle heavy electrical current (up to 6300A) and distribute it safely throughout the plant.
Key Features & Benifits
- Heavy Manufacturing & Process Industries.
- Infrastructure & Transportation Networks.
- Commercial Real Estate & Public Institutions
- Energy, Utilities & Water Infrastructure
Common Questions About PCC Panels
-
What is the typical lifespan of a PCC panel?
-
What is the difference between a PCC panel and an LT panel?The wise man therefore always holds in these matters to this principle of selections he rejects pleasures too secure other greater pleasures.
-
What is the standard voltage and current rating for a PCC panel?PCC panels operate within the low-voltage (LV) power distribution range.
Operational Voltage: Up to 690V AC, 50/60 Hz.
Current Carrying Capacity: Typically rated from 1600A up to 6300A, depending on the facility's transformer or generator output capacity.
Short-Circuit Rating: Typically withstands fault currents of 50kA, 65kA, or 100kA for 1 second.
-

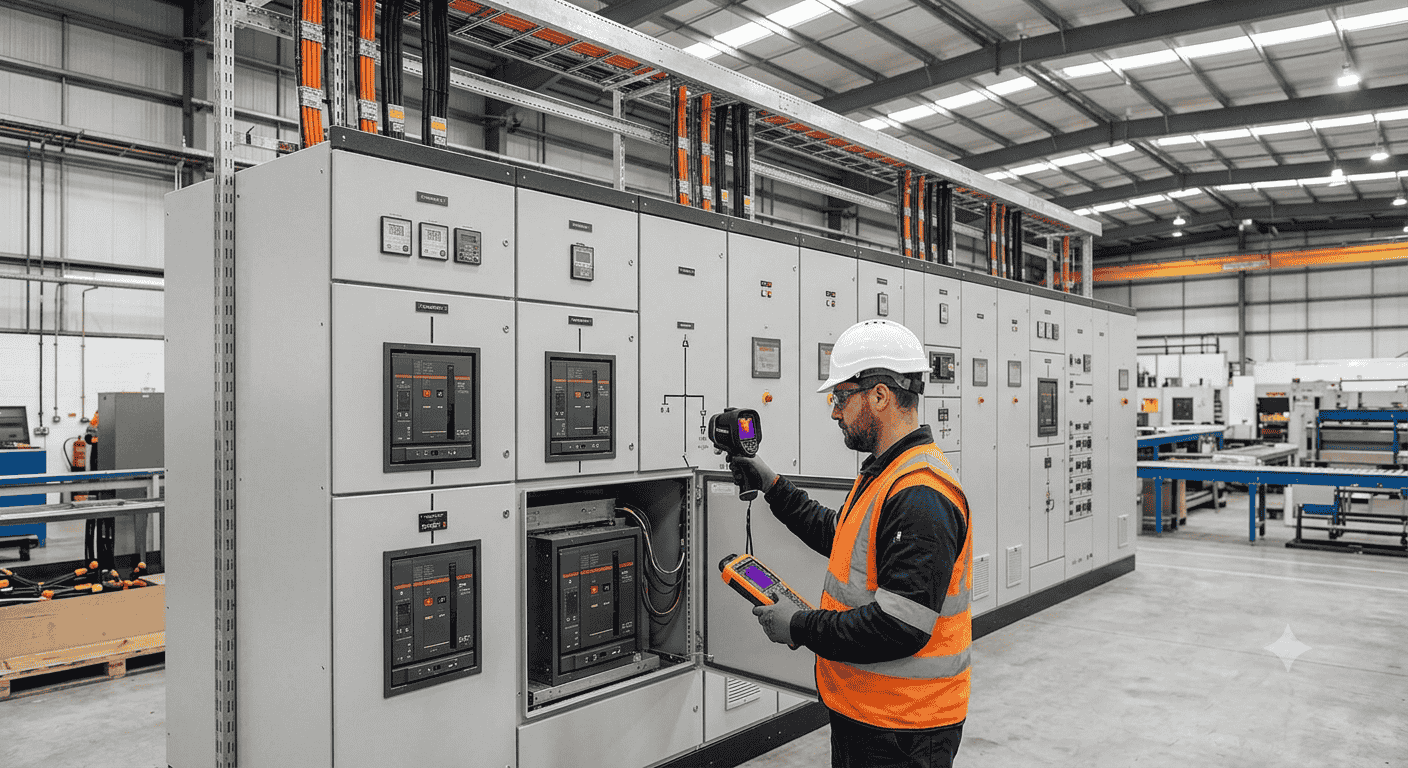

What routine maintenance is required for PCC panels?Thermal Imaging (Infrared Thermography): Scan busbar joints and breaker connections under load to detect overheating hot spots.
